Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney

Brand Name :

CAT

Model Number :

140K

Price :

Negotiation

Payment Terms :

L/C, T/T, Western Union, MoneyGram,

Supply Ability :

3000 units per year

Delivery Time :

5 days

Hydraulic Power Caterpillar Used CAT 140K Grader Used Construction Machiney

Hydraulic Power Caterpillar Used CAT 140K Grader used construction machiney

Model Introduction

The CAT grader 140K, also known as the Caterpillar 140K Motor Grader, is a heavy-duty earthmoving machine designed for various construction, maintenance, and grading tasks. Its versatility and reliability make it a popular choice for asphalt and concrete pavement work.

Key Specifications:

Model: CAT 140K
Brand: Caterpillar
Origin: Japan
Year of Manufacture: (can vary depending on the unit)
Color: Yellow

Engine and Power:

Engine Type: Cat® C7 ACERT
Rated Power: 128 kW
Rated Speed: 2000 rpm
Maximum Torque: 996 N·m
Number of Cylinders: 6
Displacement: 7.2 L

Transmission and Mobility:

Transmission Type: Hydraulic
Forward Speed: Up to 46.8 km/h (varies with gear)
Reverse Speed: Up to 37 km/h (varies with gear)
Moving Type: Mobile
Walking Mode: Crawler

Dimensions and Weight:

Weight: 14,138 kg
Dimension (L x W x H): 8504 x 3452 x 3322 mm

Blade and Working Capacity:

Blade Width: 3.7 m
Product Capacity: >400 t/h (Semi-Automatic)

Hydraulic System:

Hydraulic Pump Type: Variable Piston
Flow Rate (at Rated Speed): 210.5 L/min
Rated Working Pressure: 25500 Mpa

Technical Parameters

Base Power (1st Gear) - Net	128 kW
Engine Model	Cat C7
Displacement	7.2 l
Bore	105 mm
Stroke	127 mm
High - Ambient Capability	50 °C
Derating Altitude	3048 m
Number of Cylinders	6
Maximum Torque	996 N·m
Torque Rise	46%
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
VHP Range - Net	128-143 kW (171-191 hp)
Note (3)	Maximum torque measured at 1,000 rpm in gears 4-8.
Note (2)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

MOLDBOARD

Blade Width	3.7 m
Arc Radius	413 mm
Throat Clearance	120 mm
End Bit - Width	152 mm
Cutting Edge Width	152 mm
End Bit - Thickness	16 mm
Cutting Edge Thickness	16 mm
Moldboard - Height	610 mm
Moldboard - Thickness	22 mm

BLADE RANGE

Moldboard Sideshift - Left	512 mm
Circle Centershift - Left	752 mm
Moldboard Sideshift - Right	663 mm
Circle Centershift - Right	728 mm
Maximum Lift Above Ground	480 mm
Maximum Shoulder Reach Outside of Tires - Left	1896 mm
Blade Tip Range - Forward	40°
Maximum Shoulder Reach Outside of Tires - Right	1978 mm
Maximum Depth of Cut	735 mm
Blade Tip Range - Backward	5°

FRAME

Circle - Outer Diameter	1530 mm
Front Axle - Wheel Lean - Left/Right	18°
Front Axle - Total Oscillation per Side	32°

WEIGHTS

Gross Vehicle Weight - Typically Equipped	17271 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle	12335 kg
Gross Vehicle Weight - Typically Equipped - Front Axle	4936 kg
Gross Vehicle Weight - Base - Total	14750 kg
Gross Vehicle Weight - Base - Rear Axle	10491 kg
Gross Vehicle Weight - Base - Front Axle	4259 kg
Gross Vehicle Weight - Typically Equipped - Total	17271 kg

Product Features:

Maximize Performance

Power Shift Countershaft Transmission matched to engine maximizes power to the ground.

Increase Efficiency

Aggressive blade angles, optimized moldboard curvature and large throat clearance allows material to roll more freely along blade.

Simple to Operate

Optional AutoShift Transmission maximizes productivity by automatically shifting the transmission at optimal shift points.

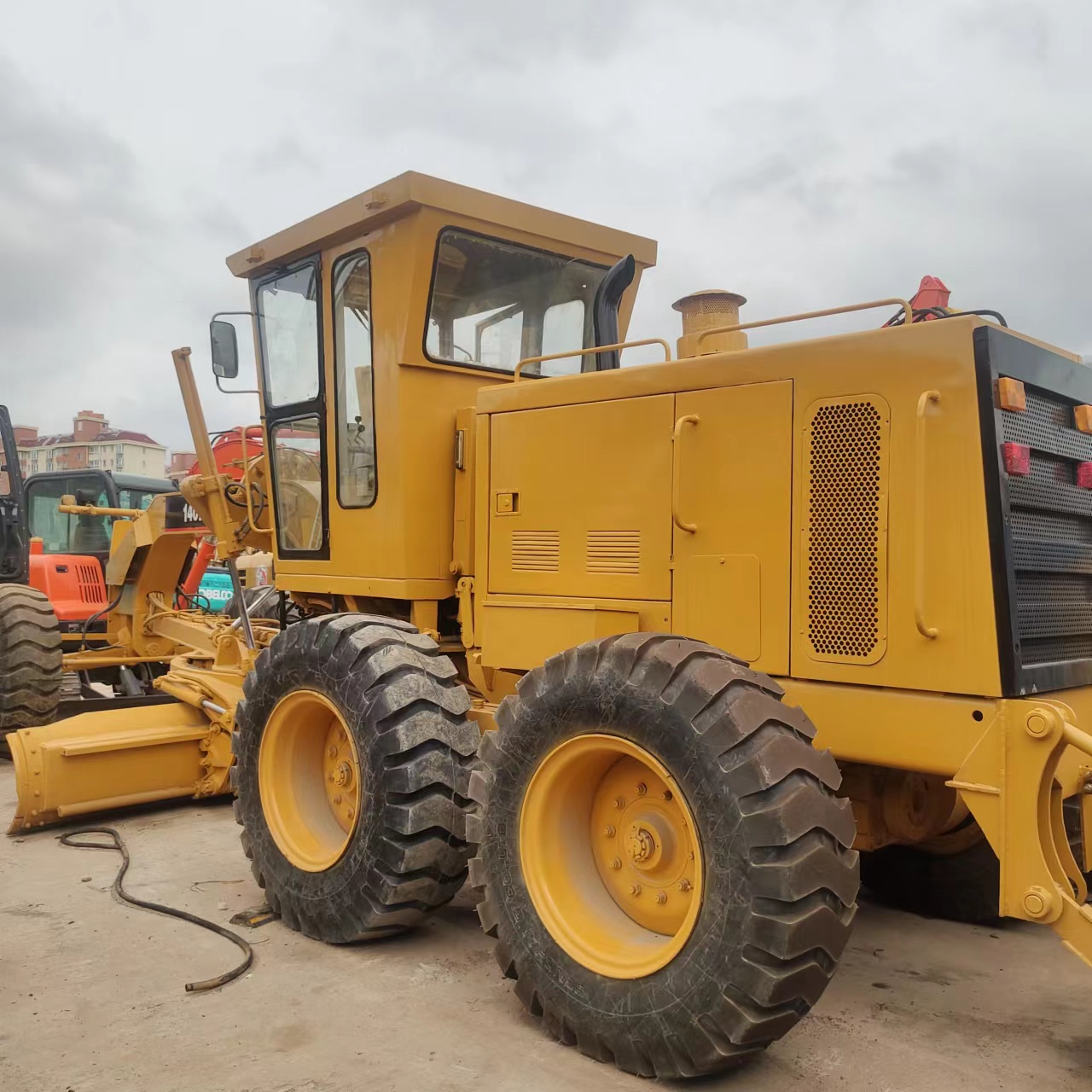

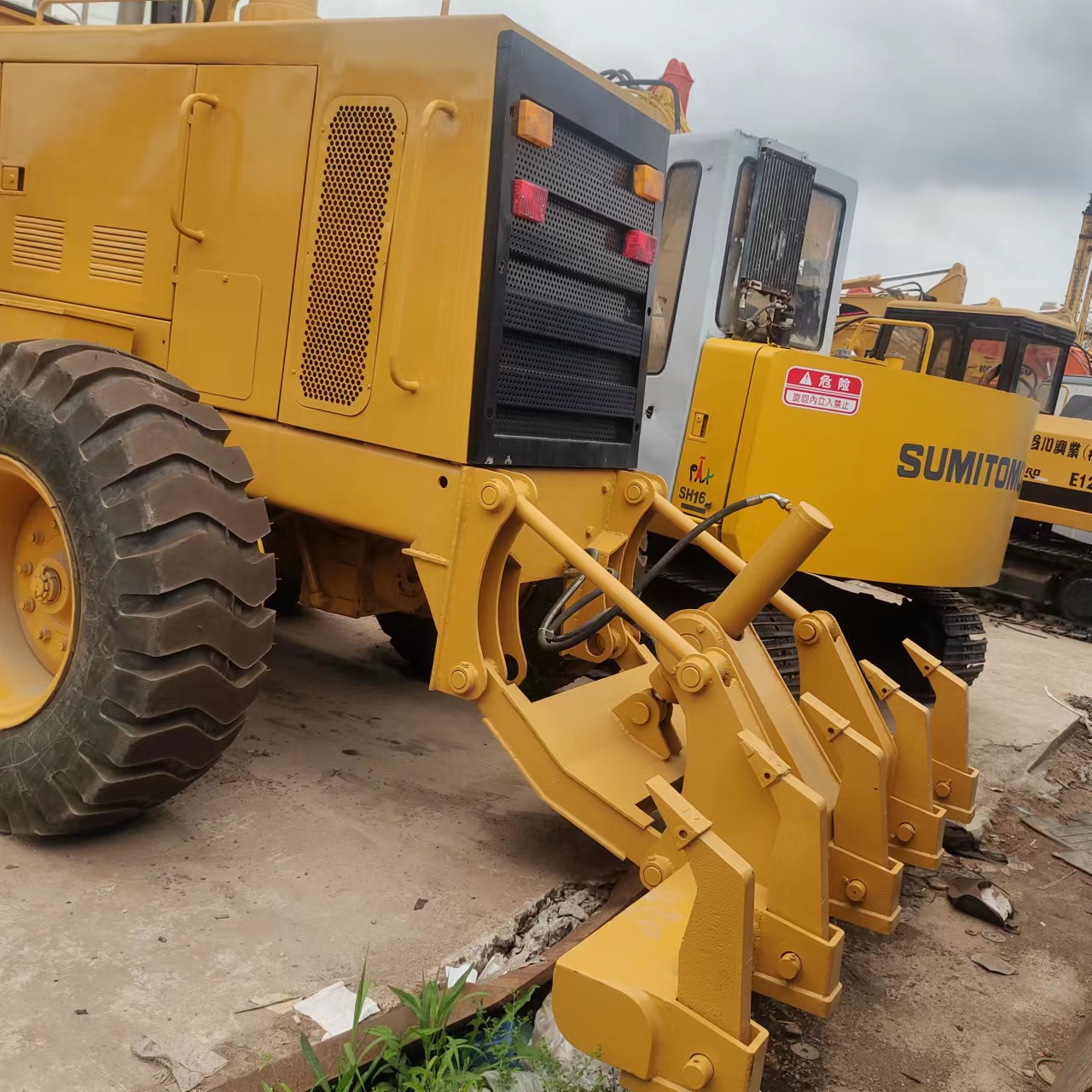

Product Photos

Support and Services

Machine Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Spare parts supply after becoming our customer

Our main products

Products	Brand	Model
Used Excavator	CAT	306,307,312D,315D,320C,320D,325,330D,336D,349D
	Hitachi	EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450
	Hitachi	ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450
	Komatsu	PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450
	Kobelco	SK60,SK75,SK120,SK200,SK260,SK350
	Doosan	DH55,DH60,DH150,DH220,DH225,DH300
	Doosan	DX55,DX60,DX150,DX220,DX225,DX300
	Hyundai	130,150,215,225,305
	Volvo	EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480
	Kubota	U15,U17,U30,U35,KX155,KX165
	SANY	55,60,75,95,135,215,235
Used Bulldozer	CAT	D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R
	Komatsu	D31EX,D65E,D85,D155,D275,D375,D65PX
	Shangong	SEM816,SEM818
	Shantui	SD13,SD16,SD22,SD32
Used Loader	CAT	938G,966F,966H,966G,950GC,980G
	Komatsu	WA320,WA380,WA470,WA500,WA600
	XCMG	50GN
	LIiugong	LG856,856H,835,836,862
	Shangong	SEM650,652
	Lingong	LG936,956,958,968
Used Backhoe Loader	JCB	3CX,4CX,
	CASE	508M,580L,580N
	Lingong	776,777
Used Motor Grader	CAT	12G,4G,120G,140G,140K
	Komatsu	GD511A,GD655
	XCMG	GR180,GR215
	LIiugong	61,416,141,804,215
	Shangong	919,921
	Lingong	9180
Used Road roller	SANY	STR140,STR160,SSR220A,SSR200A
	XCMG	CA25/30,XS143/163/183,XS203/223/263
	Liugong	LG614,616,618,620,622,626
	Shantui	SR16,SR18,SR20,SR22

Packing and Shipping

Used excavators and such are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.

FAQ

1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB / CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
