General Information

• Model: Cat Excavator 307 (also known as CAT® 307)
• Type: Mini Hydraulic Tracked Excavator

Performance Specifications

• Engine:
  • Engine Model: Cat® C2.4T
  • Rated Power: 36.5 kW / 2400 rpm
  • Displacement: 2.43 L
  • Bore and Stroke: 87 mm x 102 mm
  • Emission Standard: Tier IV (National IV)
• Hydraulic System:
  • Main Pump Type: Variable Displacement Piston Pump
  • Maximum Main Pump Flow: 147 l/min
  • Operating Pressure: 28.5 MPa (Working Oil Circuit)
  • Travel and Swing Circuit Pressure: 28.5 MPa and 24 MPa respectively
• Operating Weights and Dimensions:
  • Operating Weight: 7023-7435 kg
  • Bucket Capacity: 0.33 m³ (UD)
  • Transport Length: 6055 mm
  • Transport Width: 2300 mm
  • Transport Height: 2630 mm
  • Track Length on Ground: 2120 mm
  • Track Width: 450 mm
  • Ground Clearance: 360 mm
• Performance Parameters:
  • Swing Speed: 10.8 rpm
  • Swing Torque: 16.3 Nm
  • Travel Speed: 3.2-5.1 km/h
  • Bucket Digging Force: 53.2 kN
  • Arm Digging Force: 36.3 kN
  • Maximum Tractive Force: 56.9 kN

Features

• Comfortable Cab: The spacious cab provides a comfortable working environment.
• Intuitive Controls: The seat-mounted controls enhance accuracy and efficiency.
• Standard Counterweight Design: The counterweight is positioned further back on the machine, providing a stable platform for lifting and digging operations.
• Fuel Efficiency: The excavator is designed to minimize fuel consumption, reducing operating costs.

Technical Parameters:

Parameter	Value
Model	Caterpillar 307
Product Power	Traditional Power
Bucket capacity	0.3m³
Bucket form	Backhoe
Maximum Dumping Height	5 m
displacement	2.83 L
working form	Direct injection, turbocharged
Color	Yellow
Engine	Mitsubishi 4M40 TL
Oil type	Diesel Oil
After-sale service	Available
Cooling method	water-cooling
Spacious cab	Yes
Low noise	Yes

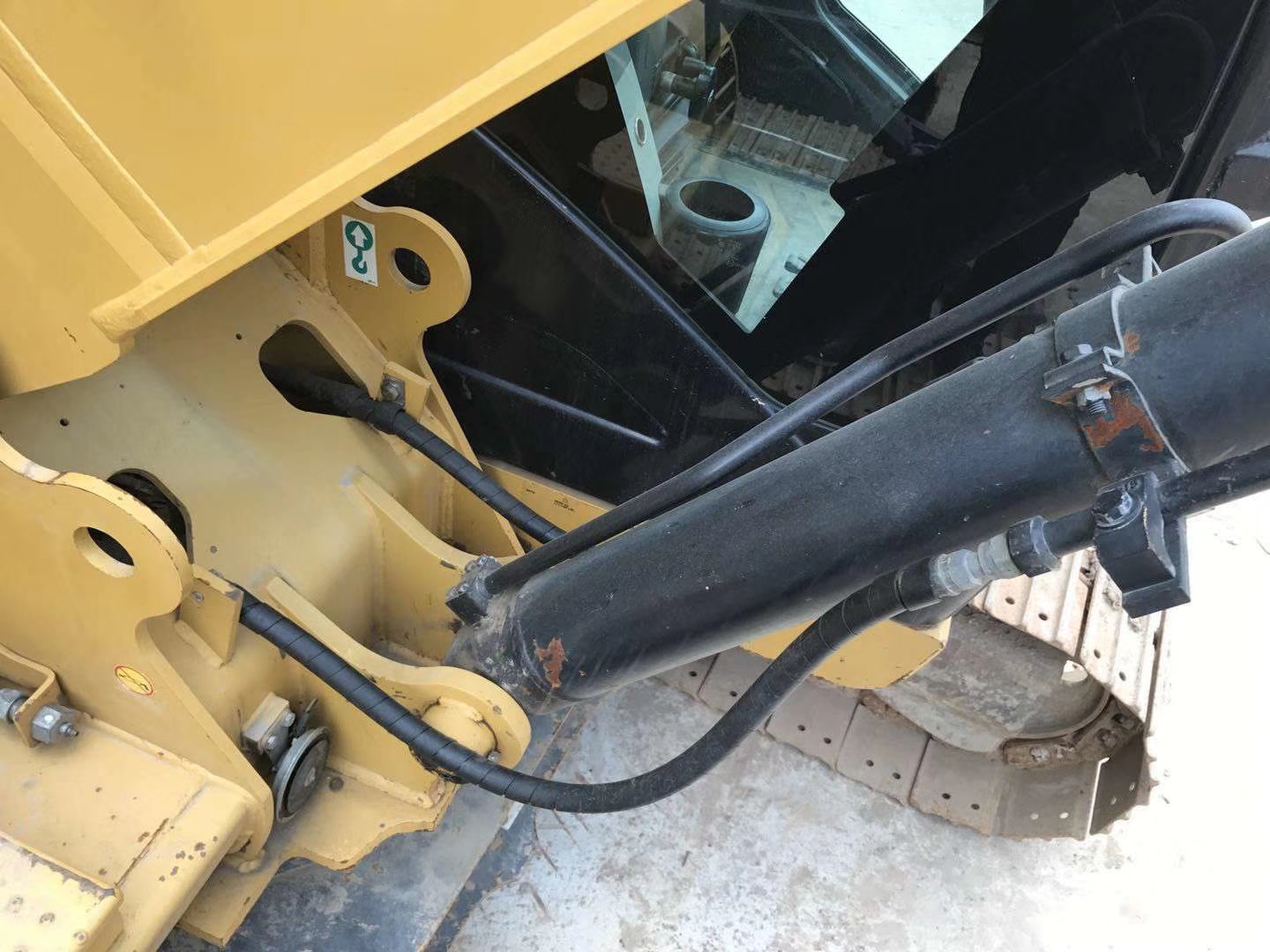

Product Photos:

Support and Services:

Our main products:

Products	Brand	Model
Used Excavator	CAT	306,307,312D,315D,320C,320D,325,330D,336D,349D
	Hitachi	EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450
		ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450
	Komatsu	PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450
	Kobelco	SK60,SK75,SK120,SK200,SK260,SK350
	Doosan	DH55,DH60,DH150,DH220,DH225,DH300
		DX55,DX60,DX150,DX220,DX225,DX300
	Hyundai	130,150,215,225,305
	Volvo	EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480
	Kubota	U15,U17,U30,U35,KX155,KX165
	SANY	55,60,75,95,135,215,235
Used Bulldozer	CAT	D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R
	Komatsu	D31EX,D65E,D85,D155,D275,D375,D65PX
	Shangong	SEM816,SEM818
	Shantui	SD13,SD16,SD22,SD32
Used Loader	CAT	938G,966F,966H,966G,950GC,980G
	Komatsu	WA320,WA380,WA470,WA500,WA600
	XCMG	50GN
	LIiugong	LG856,856H,835,836,862
	Shangong	SEM650,652
	Lingong	LG936,956,958,968
Used Backhoe Loader	JCB	3CX,4CX,
	CASE	508M,580L,580N
	Lingong	776,777
Used Motor Grader	CAT	12G,4G,120G,140G,140K
	Komatsu	GD511A,GD655
	XCMG	GR180,GR215
	LIiugong	61,416,141,804,215
	Shangong	919,921
	Lingong	9180
Used Road roller	SANY	STR140,STR160,SSR220A,SSR200A
	XCMG	CA25/30,XS143/163/183,XS203/223/263
	Liugong	LG614,616,618,620,622,626
	Shantui	SR16,SR18,SR20,SR22

Packing and Shipping:

Used excavators are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.

FAQ:

1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB / CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
