Brand Name : | sany |
Model Number : | ZLJ5442THBBE |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 3000 units per year |
Delivery Time : | 7-20 work days |
Used Zhonglian Heavy Industry pump truck, Mercedes Benz chassis, supporting on-site inspection
Product introduction
Zhonglian Heavy Industry ZLJ5442THBBE Pump Truck - Efficient Construction, Leading the Future with Intelligence
Zhonglian Heavy Industry ZLJ5442THBBE pump truck redefines concrete conveying efficiency with excellent performance and intelligent technology. Equipped with a large displacement hydraulic pumping system, the maximum theoretical conveying capacity reaches 180m ³/h, making it easy to cope with high-intensity construction scenarios such as high-rise buildings and large-scale infrastructure; Innovative arm design, fabric height coverage of 44 meters, flexible and precise, wider construction range.
Core advantages:
Efficient and energy-saving: adopting electric drive or National VI power configuration, energy consumption is reduced by 15%, and operating costs are better;
Intelligent control: equipped with remote diagnosis and one click arm extension and retraction technology, ensuring safe and convenient construction;
Stable and durable: High strength steel arm frame+intelligent shock absorption system, stable and reliable even under complex working conditions;
Environmental compliance: Compliant with global emission standards, green construction without pressure.
Zhonglian Heavy Industry empowers precise pouring of every cubic meter of concrete with ingenuity and technology. Choosing ZLJ5442THBBE means choosing a high-end pumping solution that is worry free, labor-saving, and cost-effective!
Technical parameters of ZLJ5442THBBE pump truck from Zoomlion Heavy Industry
1. Basic parameters
Model: ZLJ5442THBBE
Chassis brand: Domestic high-end heavy-duty truck chassis (optional)
Drive form: 8 × 4
Vehicle weight: 44000 kg
Wheelbase: 1850+3350+1350 mm
Emission standard: National VI (meets global environmental requirements)
2. Pumping system
Theoretical conveying capacity: 180 m ³/h (high pressure mode)/120
m ³/h (low pressure mode)
Maximum pumping pressure: 12 MPa (high pressure)/8 MPa (low pressure)
Conveyor cylinder diameter x stroke: 260 x 2100 mm
Hopper capacity: 0.7 m ³
Hydraulic system: Open hydraulic system, intelligent power matching
3. Arm system
Arm type: RZ type five section arm
Maximum fabric height: 44 meters
Maximum fabric radius: 40.8 meters
Arm rotation angle: ± 270 °
End hose length: 3 meters
4. Power system
Engine: National VI diesel engine (optional electric drive
configuration)
Rated power: 390 kW (approximately 530 HP)
Fuel tank capacity: 400 L
5. Intelligent control system
Remote monitoring: GPS+IoT remote diagnosis
Intelligent operation: One click arm extension and retraction, intelligent anti-interference
Safety protection: Arm suspension+anti rollover protection
6. Applicable working conditions
High rise buildings (below 50 floors)
Bridge/Tunnel Construction
Large scale infrastructure projects
Zhonglian Heavy Industry ZLJ5442THBBE Pump Truck - With cutting-edge technology to assist efficient construction!
Technical parameters
Parameter | Value |
---|---|
Model | ZLJ5442THBBE |
Operating Weight (kg) | 65,500 |
tower | 50 story building height |
Engine Model | diesel engine |
Rated Power | 390 kW(530 HP) |
Construction site | Bridge/Tunnel Construction |
Construction conditions | Large scale infrastructure projects |
safety protection | Arm suspension+anti rollover protection |
Fuel tank capacity | 400 L |

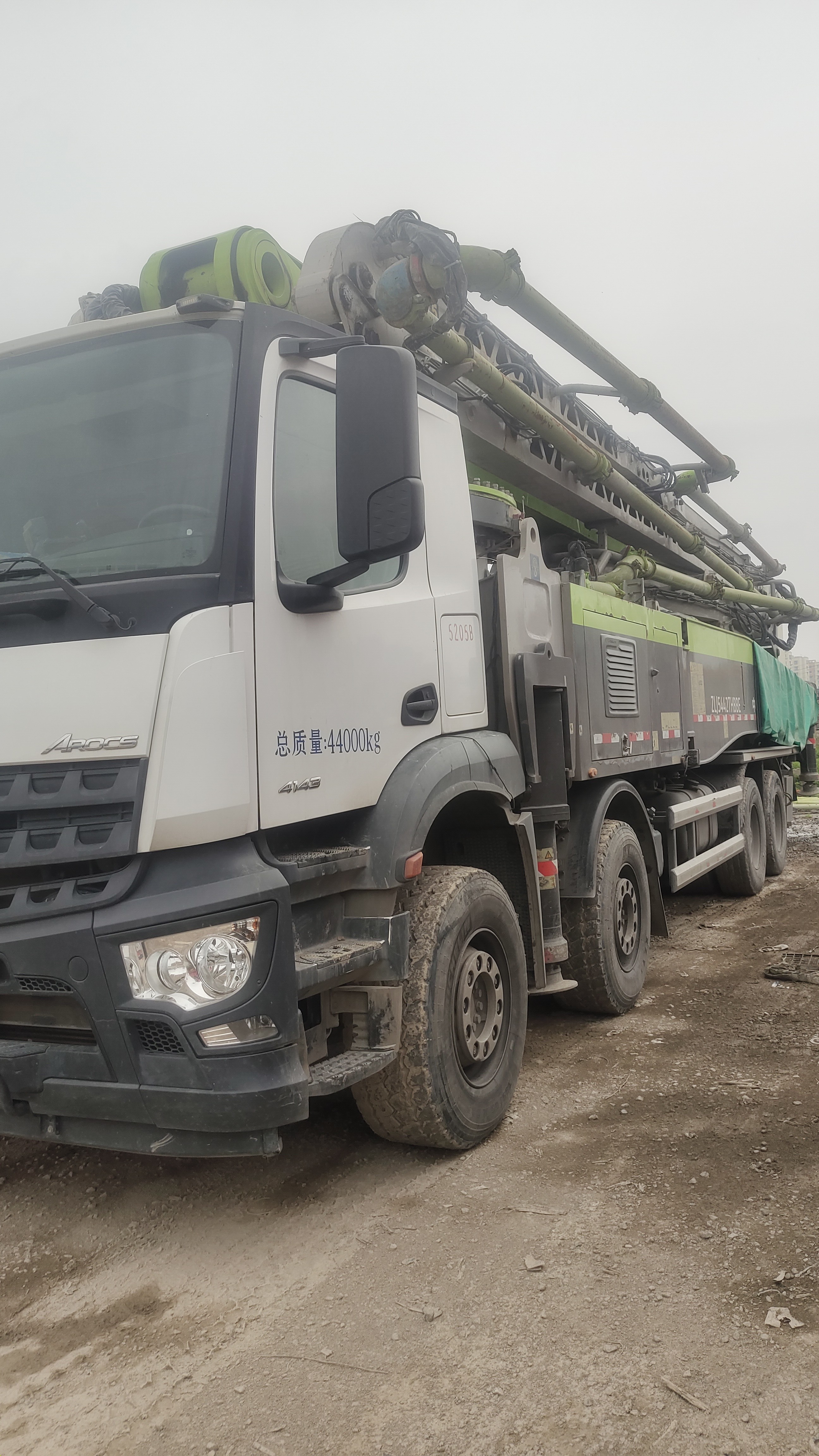

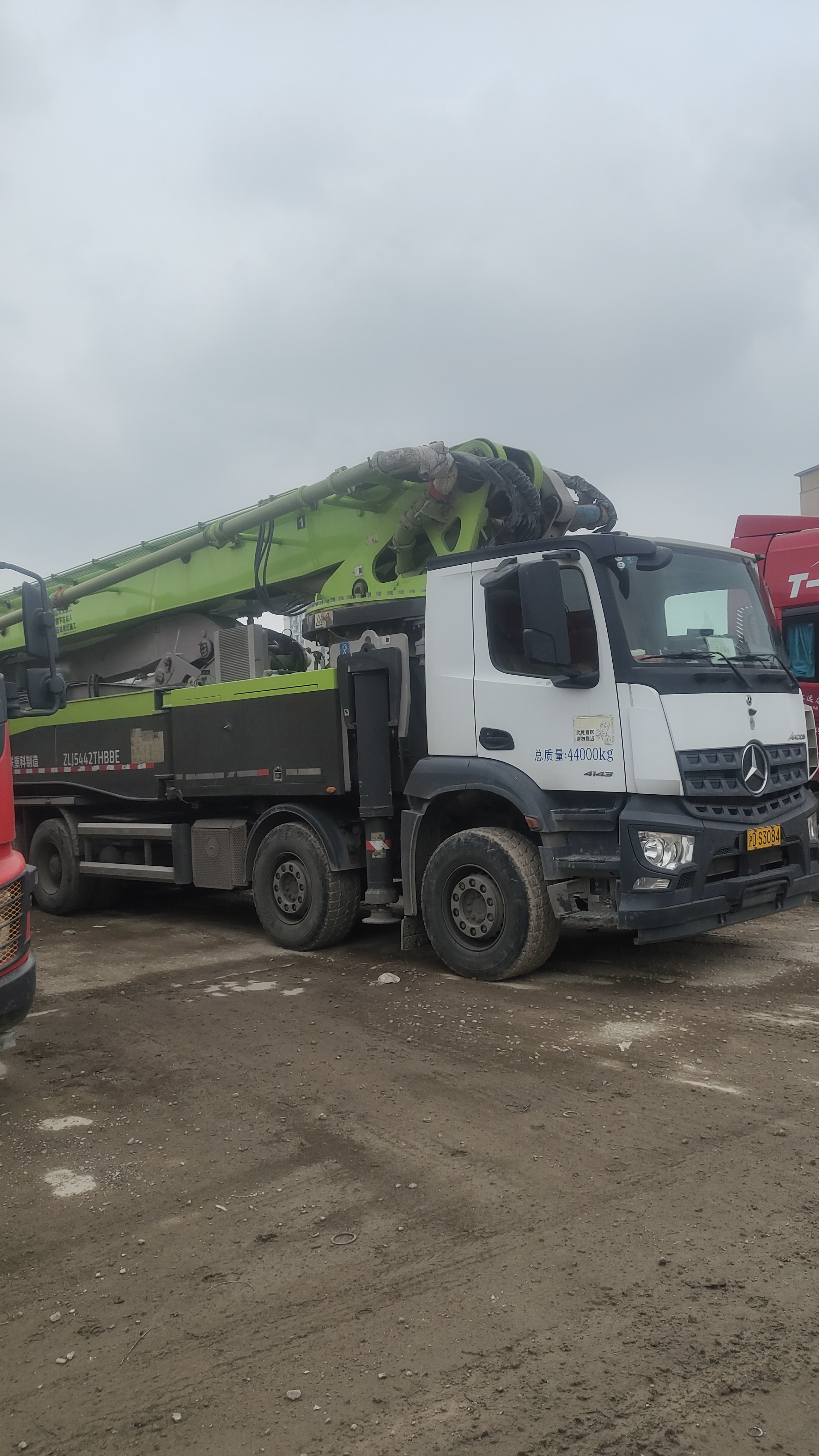

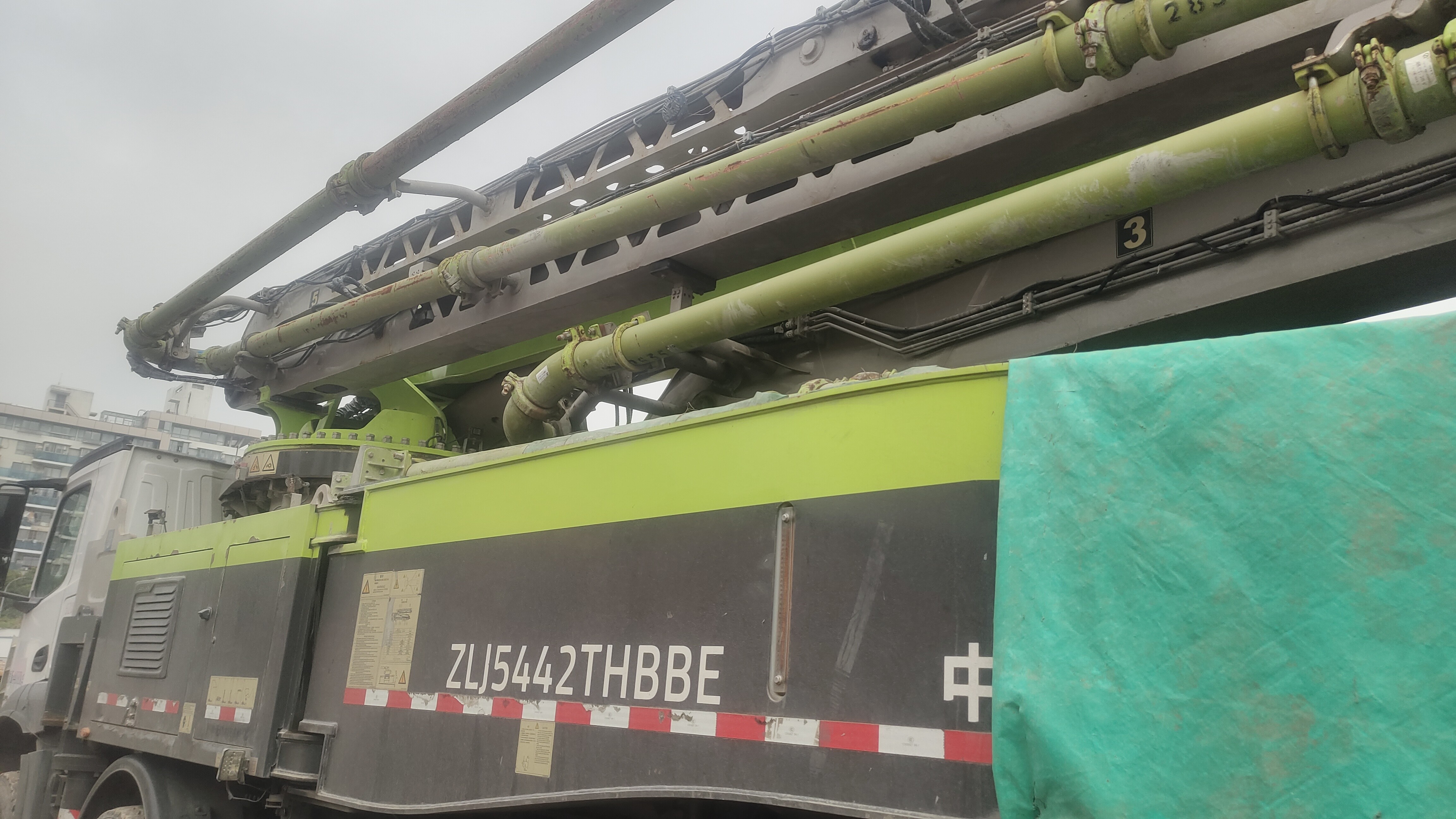

Detailed photos
