Used Japanese Imported CAT Excavator 308 High used construction machinery

Model Introduction:

General Specifications:

• Model Name: Cat 308 (may include variations such as 308DCR, 308E, 308E2, etc.)
• Machine Type: Medium-sized excavator
• Operating Weight: Depending on the model, the operating weight ranges from approximately 7,160 kg (308E) to 7,850 kg (308DCR).
• Track Type: Crawler
• Bucket Type: Backhoe
• Application: General purpose

Engine System:

• Engine Model: Varies depending on the model, examples include Mitsubishi MITSUBISHI 4M40 TL (308DCR) and Cat® C3.3 DI Turbo (308E).
• Rated Power: Ranges from 43/41.5 kw/rpm (308DCR) to 49.7 kW (308E).
• Displacement: Depends on the model, with options like 2.8 L (308DCR) or 3.3 L (308E).
• Cooling System: Water-cooled

Performance Parameters:

• Operating Weight (kg): As mentioned above, it ranges from 7,160 kg (308E) to 7,850 kg (308DCR).
• Bucket Capacity (m³): Also varies, with options such as 0.23 m³ (308DCR) or 0.38 m³ (308E).
• Travel Speed (km/h): For example, 5 km/h (308DCR) or 5.1/3.2 km/h (308E, high/low).
• Swing Speed (rpm): Such as 10.8 rpm (308E).
• Gradeability (%): 30% (308E)

Dimensions:

• Overall Length (mm): Ranges from approximately 5,810 mm (308DCR) to 6,080 mm (308E).
• Overall Width (mm): 2,320 mm (both 308DCR and 308E).
• Overall Height (mm): Ranges from 2,590 mm (308DCR) to 2,700 mm (308E).
• Track Ground Length, Track Width, and other dimensions also vary by model.

Working Range:

• Maximum Digging Radius (mm): For instance, 6,420 mm (308E).
• Maximum Digging Depth (mm): Such as 4,210 mm (308E).
• Maximum Digging Height (mm): For example, 7,330 mm (308E).
• Maximum Dumping Height (mm): Like 5,300 mm (308E).

Fuel and Oil Capacities:

• Fuel Tank Capacity (L): Varies from 125 L (308DCR) to 135 L (308E).
• Hydraulic Oil Tank Capacity, Engine Oil Change Quantity, and other capacities also vary depending on the model.

The Cat 308 series of excavators offers stable performance, efficient digging capabilities, and a moderate size, making it suitable for various applications in construction sites, roadworks, and mining operations.

Technical Parameters:

Parameter	Value
Model	Caterpillar 308
Tonnage	8(ton)
Bucket capacity	0.23m³
rated power	70/2000(Kw/rpm)
overall length	8170(mm)
overall width	2590(mm)
Overall height	2970(mm)
No. of cylinders	4
Engine model	Cat C4.4 ACERT
Oil type	Diesel Oil
After-sale service	Available
Cooling method	water-cooling
working form	Meet EU Stage IIIB emission standards
Low noise	Yes

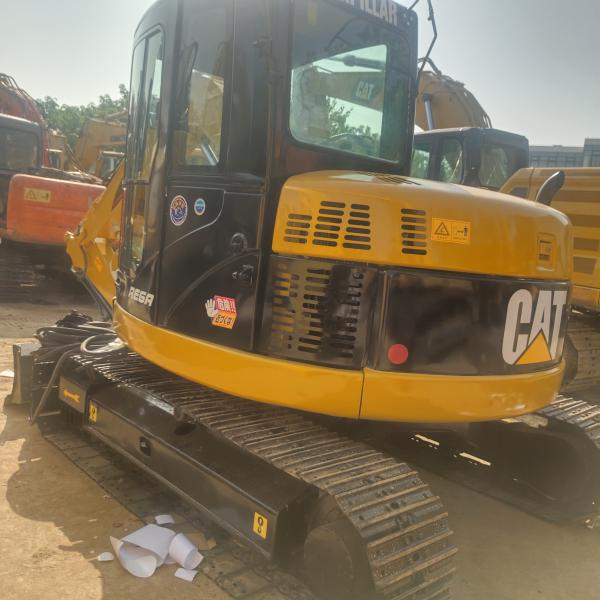

Product Photos:
