Brand Name : | hyundai |
Model Number : | 60 |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 3000 units per year |
Delivery Time : | 7-20 work days |

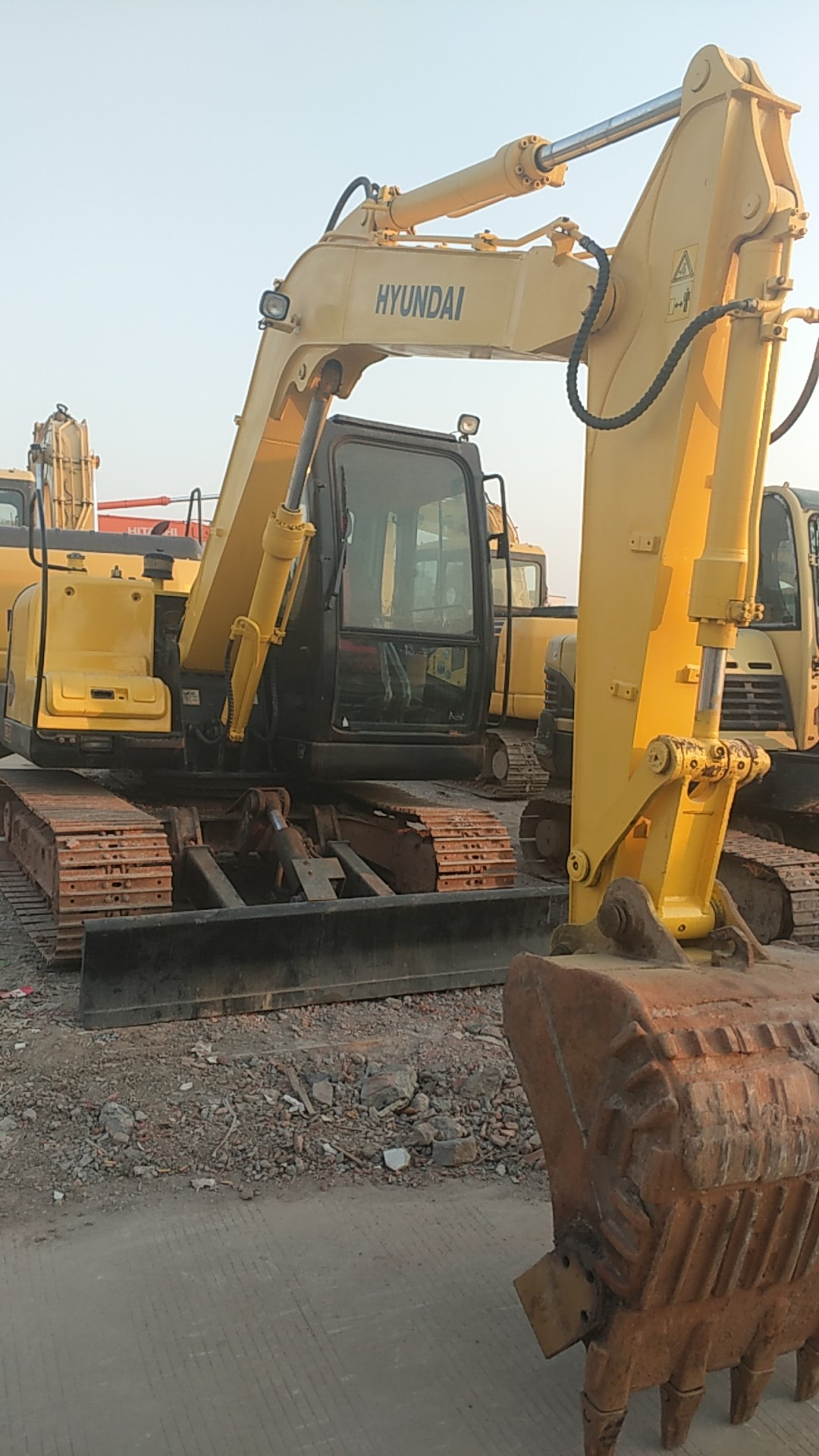

Used hyundai 60 in a Good condition and ready for work
Product introduction
The Hyundai 60-ton excavator series offers a range of powerful and reliable machines for various excavating and loading tasks. With multiple models and configurations available, including both wheeled and crawler excavators, Hyundai provides options to suit different work environments and applications.
The key features and specifications of the Hyundai 60-ton excavator series include:
Technical parameters
Category | Parameter | Hyundai 60 Excavator (Example Models) |
---|---|---|
General Information | Manufacturer | Hyundai |
Tonnage | Approx. 6 tons | |
Type | Wheeled (e.g., R60w-7) / Crawler (e.g., HX60) | |
Engine | Brand | Yanmar |
Model | 4TNV94L-ZXSHYB (crawler) / Variant (wheeled) | |
Power Output | 36.2 kW (HX60) / 57 kW (R60w-7) | |
Rated Speed | 2200 rpm (HX60) / 2400 rpm (R60w-7) | |
Cooling System | Water-cooled | |
Cylinders | 4 | |
Performance | Operating Weight | 5720 kg (HX60) / 5750 kg (R60w-7) |
Bucket Capacity | 0.21 m³ (both) | |
Max Digging Depth | 3760 mm (HX60) / 3500 mm (R60w-7) | |
Max Digging Radius | 6127 mm (HX60) / 6150 mm (R60w-7) | |
Max Loading Height | 4080 mm (HX60) / 4340 mm (R60w-7) | |
Gradeability | 70% (both) | |
Hydraulic System | Main Pump Type | Variable displacement piston pump |
Main Pump Max Flow | 138 L/min (HX60) / 2 x 60 L/min (R60w-7) | |
Swing Motor Type | Axial piston motor with automatic brake | |
Travel Motor Type | Axial piston motor with brake valve and parking brake | |
Operating Pressure | 24 MPa (HX60) / Varies (R60w-7) | |
Dimensions | Overall Length (Transport) | 5900 mm (HX60) / 6100 mm (R60w-7) |
Overall Width (Transport) | 1920 mm (HX60) / 1925 mm (R60w-7) | |
Overall Height (Transport) | 2550 mm (HX60) / 2850 mm (R60w-7) | |
Track Width/Tire Size | Varies | |
Minimum Swing Radius | 2350 mm (both) | |
Fuel and Oil Capacity | Fuel Tank Capacity | 118.5 L (HX60) / 120 L (R60w-7) |
Hydraulic Oil Tank Capacity | 70 L (both) | |
Engine Oil Change Quantity | 11.6 L (both) |
Detailed photos
