CAT used loader front-end CAT 950GC wheel loader
Model Introduction
The technical parameters of CAT950GC loader are quite rich, and the
following are some main technical parameter introductions:
1, Engine parameters
Engine model: Cat ® C7.1
Rated power:
Net power (ISO 9249): 151.0 kW
Rated total power (ISO 143962200 rpm): 168.0 kW
Maximum total power (ISO 143962000 rpm): 171.0 kW
Torque:
Maximum net torque at 1300 rpm: 931.0 N · m
Maximum total torque at 1400 rpm: 1020.0 N · m
Displacement: 7.01 L
Cylinder diameter and stroke: cylinder diameter 105.0 mm, stroke
135.0 mm
These engine parameters indicate that the CAT950GC loader has
strong power performance and can meet the operational requirements
under various working conditions.
2, Whole machine parameters
Working mass of the whole machine: 18676 kg
Bucket capacity: 2.5 m ³ to 4.4 m ³ (specific capacity may vary
depending on configuration)
Rated load capacity: 5000 kg (some data shows 168 kg, but usually
the load capacity is much greater than this, which may refer to
data under specific conditions)
Driving speed:
Forward 1st gear: 7.0 km/h
Forward 2nd gear: 12.5 km/h
Forward 3rd gear: 22.0 km/h
Forward 4th gear: 34.0 km/h
Reverse 1st gear: 7.0 km/h
Reverse 2nd gear: 12.5 km/h
Reverse 3rd gear: 22.0 km/h
These machine parameters reflect the overall performance and
operational capability of the CAT950GC loader, such as working
weight, bucket capacity, driving speed, etc., which are important
indicators for measuring its work efficiency and applicability.
3, Hydraulic system parameters
Steering system pump type: piston
Maximum pump displacement of the implement system (2200 rpm): 248.0
L/min
Maximum work pressure:
At 50 ± 1.5 L/min: 27900.0 kPa
At 70 L/min (optional third function): 20680.0 kPa
Hydraulic cycle time:
Lift from transport position: 6.1 seconds
Total cycle time: 10.1 seconds
Lowering, unloaded, and floating descent: 2.8 seconds
Unload at maximum lift position: 1.2 seconds
The parameters of the hydraulic system are directly related to the
operational efficiency and performance of the loader. The CAT950GC
loader adopts a load sensing hydraulic system, which can provide
just the right hydraulic flow and pressure according to the
operation requirements, thereby improving operation efficiency and
reducing fuel consumption.
4, Other parameters
Tire specifications: Optional tires include 23.5-25 16PR, L3
(Triangle) 23.5R25 ★★, L3 (Triangle) 23.5R25 ★, L3 (Bridgestone),
etc
Cab protection structure: ROPS/FOPS roll over protection
structure/anti falling object protection structure complies with
ISO 3471 and ISO 3449 Level II standards
Maintenance and refueling capacity:
Cooling system: 48.0 L
Transmission: 45.0 L
Differential and final drive (front): 40.0 L
Differential and final drive (rear): 38.0 L
Crankcase: 20.0 L
Hydraulic oil tank: 120.0 L
Fuel tank: 290.0 L
These parameters cover the tire specifications, cab safety
performance, and maintenance related information of the CAT950GC
loader, providing users with a comprehensive understanding and
reference.
In summary, the CAT950GC loader is highly favored in the market for
its powerful power performance, efficient operation capability, and
good safety performance.
The CAT950GC loader is a powerful construction machinery. Let me
give you a detailed introduction to its key points:
Powerful: It is equipped with Cat ® The C7.1 engine provides
efficient power and an idle management system to reduce fuel
consumption.
Hydraulic system: It adopts a load sensing hydraulic system, which
can provide just the right hydraulic flow and pressure according to
the operation requirements, further improving operation efficiency
and reducing fuel consumption.
Design features: The overall design emphasizes durability and
reliability, such as its Z-shaped rod connecting rod geometry that
provides excellent pile penetration and high digging force.
Easy to operate: The driver's cabin is spacious and comfortable,
easy to operate, and equipped with humanized designs such as air
conditioning system and adjustable seats, allowing the driver to
maintain comfort even during long hours of work.
Widely used: This loader is very suitable for various working
conditions such as material stacking, truck loading, and material
handling, and is a powerful assistant in engineering construction
Technical Parameters:
| Brand | Caterpillar |
| Product model | CAT950GC |
| Operating weight of the entire machine (kg) | 15698 |
| Bucket capacity (m ³) | 2.5-4.2 |
| Engine Name | Cat® C7.1 |
| Oil type | Diesel Oil |
| Cooling method | water-cooling |
| Cylinder diameter × Travel | 105×135(mm ) |
| Bucket width | 3145(mm) |
| Wheelbase | 3450(mm) |
| Overall height | 3600(mm) |
| Rated power (Kw/rpm) | 151 |
| Walking mode | Wheel |
| advantage | Original engine, high quality and low price, with free operation
manual |

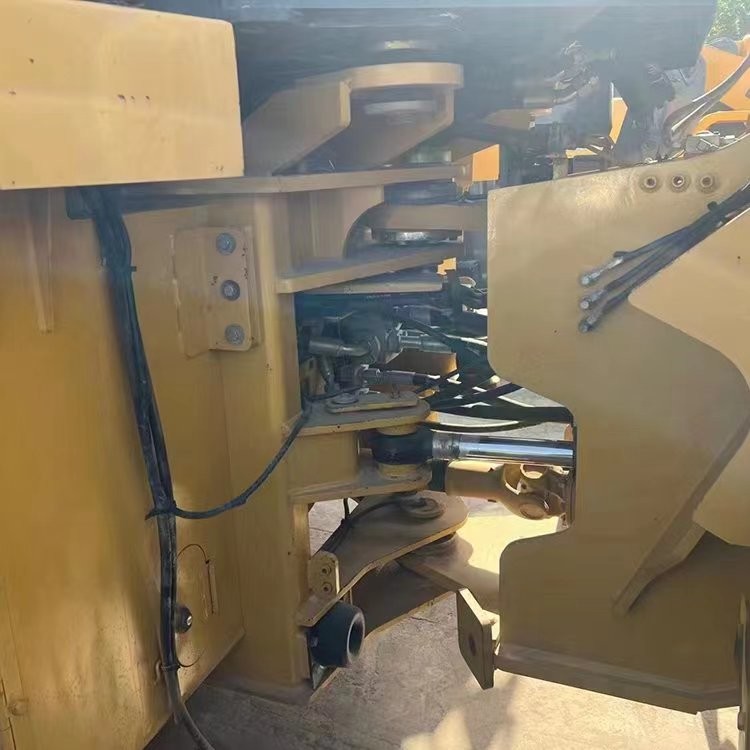

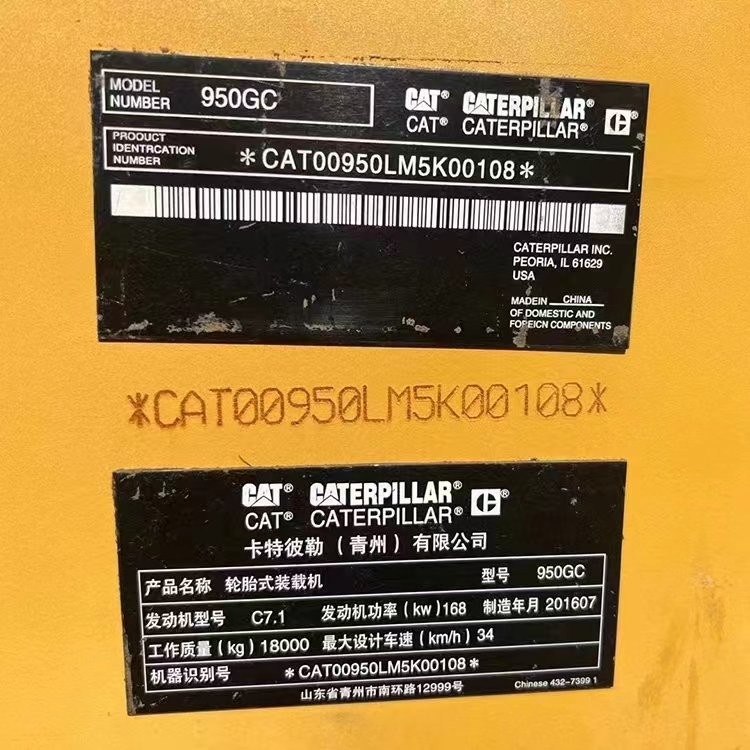

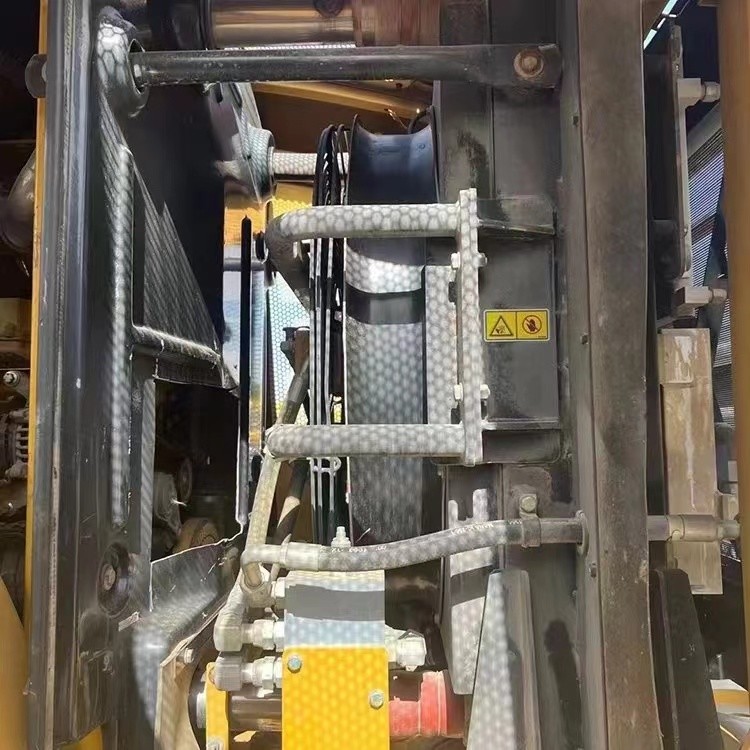

Product Photos:
Support and Services:
Machine Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Spare parts supply after becoming our customer
Our main products:
| Products | Brand | Model |
| Used Excavator | CAT | 306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi | EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 |
| Komatsu | PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 |
| Kobelco | SK60,SK75,SK120,SK200,SK260,SK350 |
| Doosan | DH55,DH60,DH150,DH220,DH225,DH300 |
| DX55,DX60,DX150,DX220,DX225,DX300 |
| Hyundai | 130,150,215,225,305 |
| Volvo | EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 |
| Kubota | U15,U17,U30,U35,KX155,KX165 |
| SANY | 55,60,75,95,135,215,235 |
| Used Bulldozer | CAT | D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu | D31EX,D65E,D85,D155,D275,D375,D65PX |
| Shangong | SEM816,SEM818 |
| Shantui | SD13,SD16,SD22,SD32 |
| Used Loader | CAT | 938G,966F,966H,966G,950GC,980G |
| Komatsu | WA320,WA380,WA470,WA500,WA600 |
| XCMG | 50GN |
| LIiugong | LG856,856H,835,836,862 |
| Shangong | SEM650,652 |
| Lingong | LG936,956,958,968 |
| Used Backhoe Loader | JCB | 3CX,4CX, |
| CASE | 508M,580L,580N |
| Lingong | 776,777 |
| Used Motor Grader | CAT | 12G,4G,120G,140G,140K |
| Komatsu | GD511A,GD655 |
| XCMG | GR180,GR215 |
| LIiugong | 61,416,141,804,215 |
| Shangong | 919,921 |
| Lingong | 9180 |
| Used Road roller | SANY | STR140,STR160,SSR220A,SSR200A |
| XCMG | CA25/30,XS143/163/183,XS203/223/263 |
| Liugong | LG614,616,618,620,622,626 |
| Shantui | SR16,SR18,SR20,SR22 |
